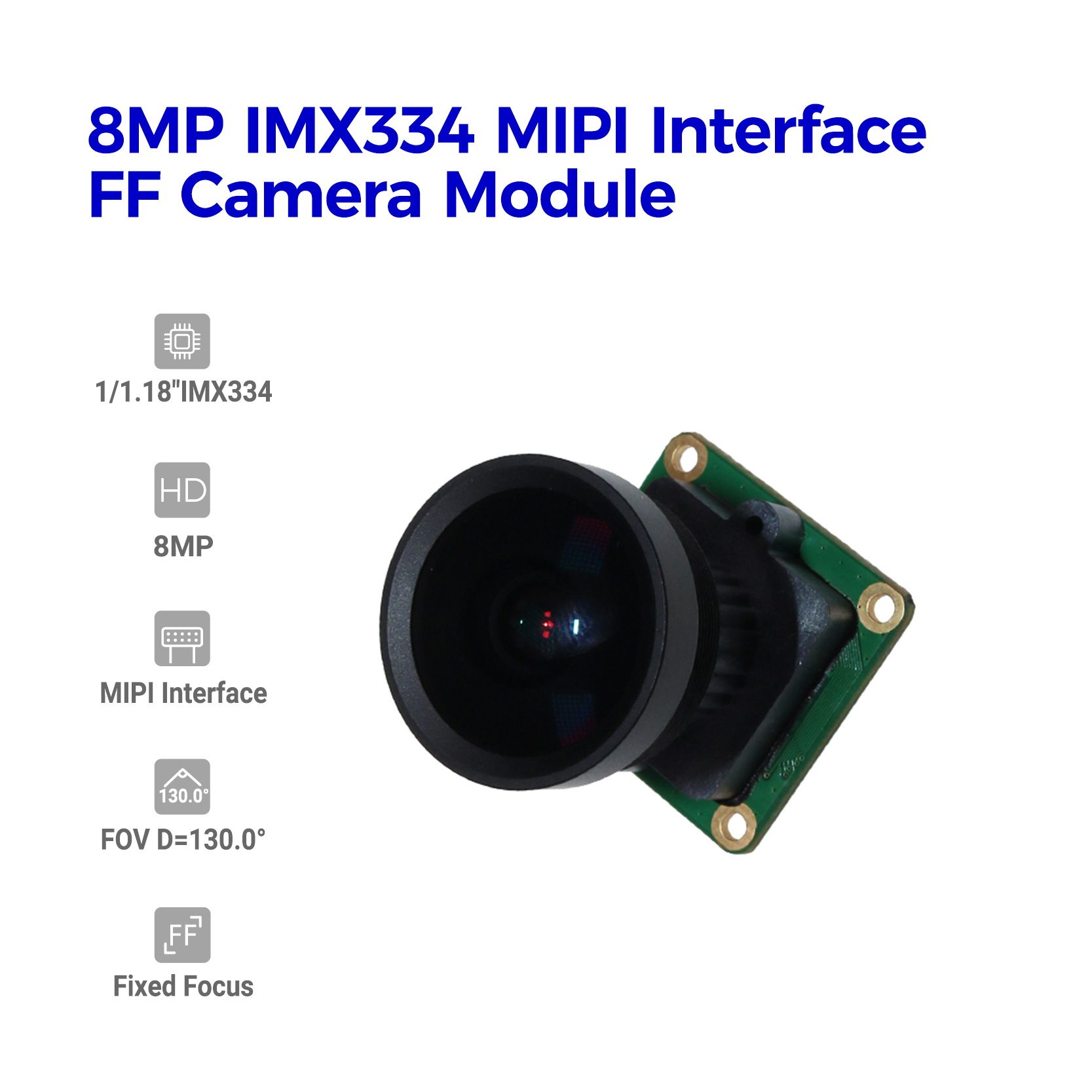

8MP IMX334 MIPI Interface FF Camera Module

US $19.00 - US $23.75

US $20.00 - US $25.00

Production Lead Time:

7 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-FMS-IMX334 V1.0

Image Sensor:

IMX334

View Angle:

130.0°(DFOV)

Focusing:

Resolution:

8MP

Module Size:

26.50 x 26.50 mm

Interface:

MIPI

Description

Contact Supplier

Product Description

HAMPO-FMS-IMX334 V1.0 is a 8megapixel MIPI interface low illumination camera module,adopting a diagonal 8.86 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 8.42 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved. This chip features an electronic shutter with variable charge-integration time.

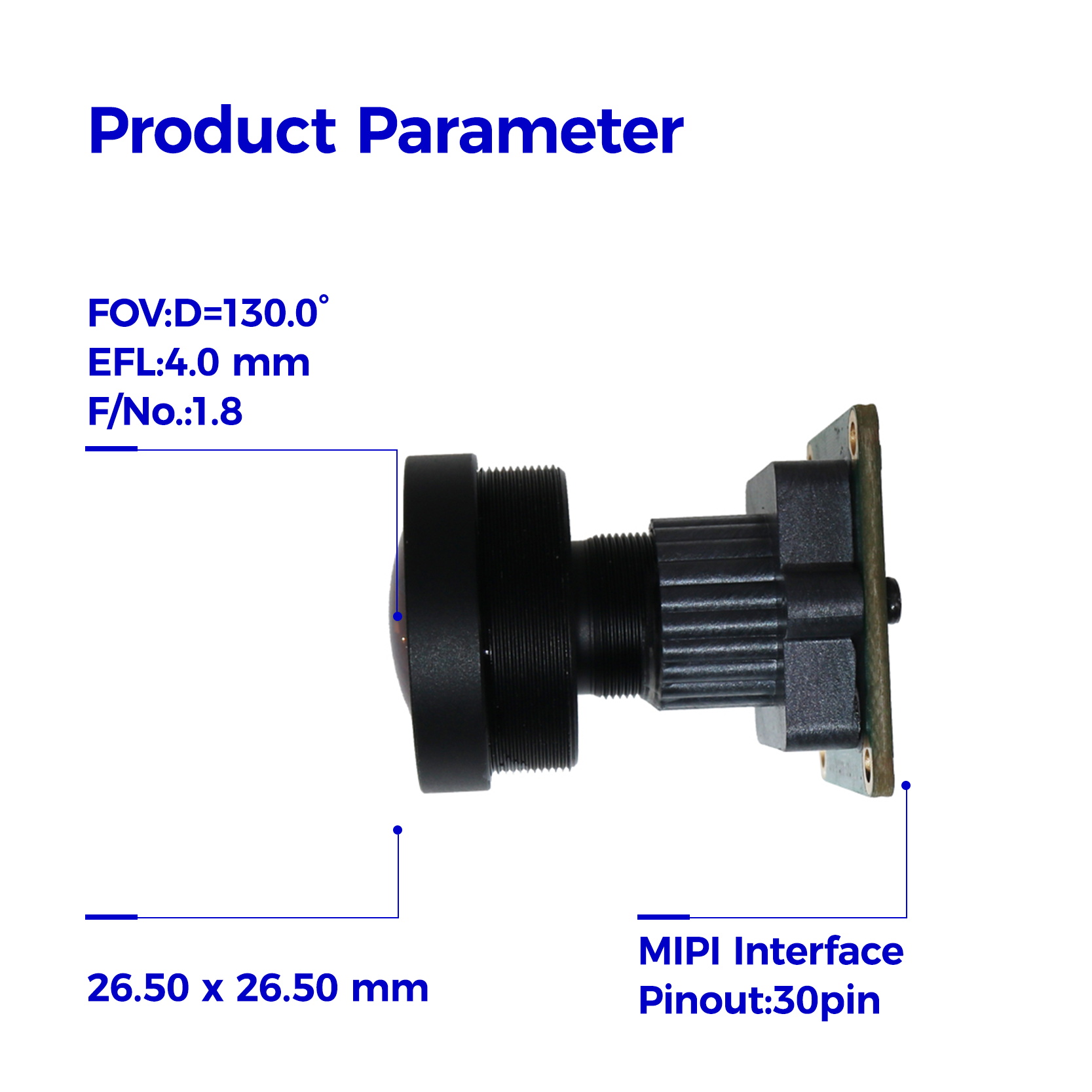

Specification

Camera Module No.	HAMPO-FMS-IMX334 V1.0
Resolution	8MP
Image Sensor	IMX334
Sensor Size	1/1.8"
Pixel Size	2.0 um x 2.0 um
EFL	4 mm
F/No.	1.8
Pixel	3840 x 2160
View Angle	130.0°(DFOV) 100.0°(HFOV) 59.0°(VFOV)
Lens Dimensions	20.00 x 20.00 x 33.80mm
Module Size	26.50 x 26.50 mm
Focusing	Fixed Focus
Interface	MIPI
Lens Type	650nm IR Filter
Operating Temperature	-30°C to +85°C

Key Features◆CMOS active pixel type dots
◆Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆Input frequency: 6 to 27 MHz / 37.125 MHz / 74.25 MHz
◆Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29 M pixels
◆Readout mode
All-pixel scan mode
Window cropping mode
Vertical / Horizontal direction-normal / inverted readout mode
◆Readout rate
Maximum frame rate in All-pixel scan mode 3840(H)×2160(V) A/D 12-bit: 60 frame/s
◆High dynamic range (HDR) function
Multiple exposure HDR
Digital overlap HDR
◆Variable-speed shutter function (resolution 1H units)
◆10-bit / 12-bit A/D converter
◆CDS / PGA function
0 dB to 30 dB : Analog Gain 30 dB (step pitch 0.3 dB)
30.3 dB to 72 dB : Analog Gain 30 dB + Digital Gain 0.3 to 42 dB (step pitch 0.3 dB)
◆Supports I/O
CSI-2 serial data output ( 4 Lane / 8 Lane, RAW10 / RAW12 output)
◆Recommended exit pupil distance: -100 mm to –∞

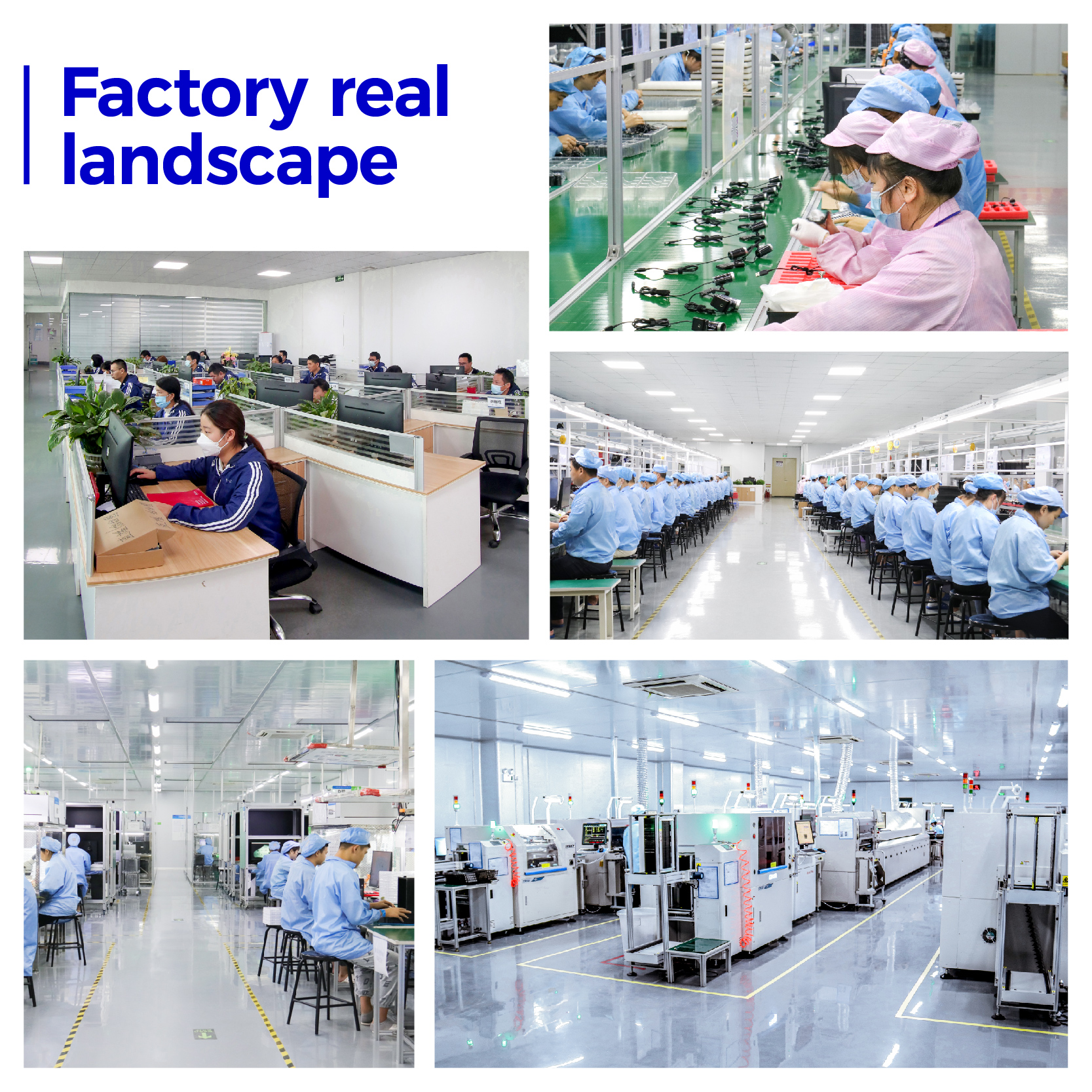

Company Profile
